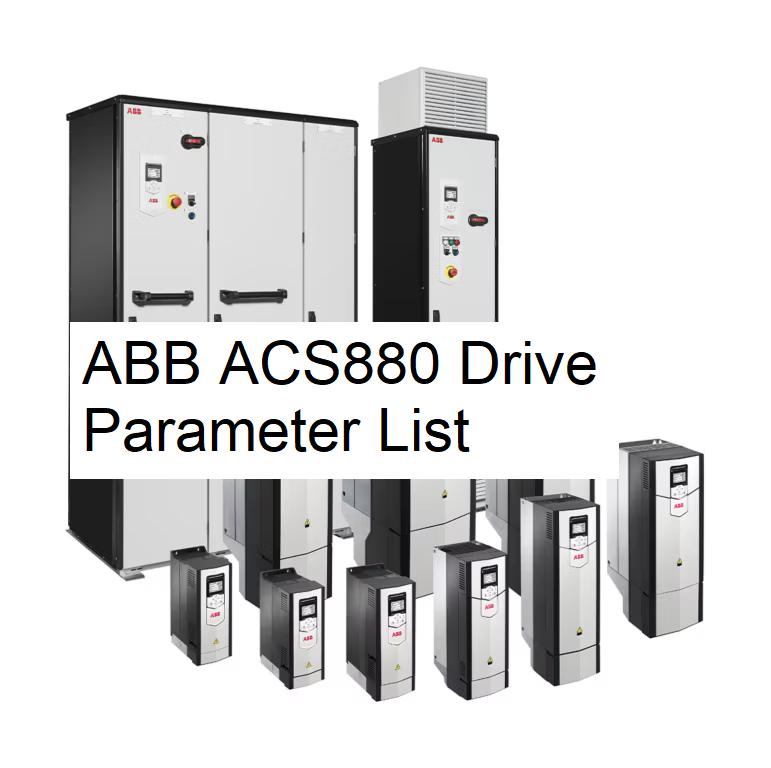

ABB ACS880 Drive Parameter List – get all information about parameter list, programming, motor parameter, start/stop and speed reference list. Here you can find all parameter for programming. With the help of these parameter you can easily program drive. All list of parameter like actual signal, motor data, limit parameter and fault function.
Simple View parameter, for complete detail parameters download parameter manual.
| Factory Reset | |||
| 96.06 | 62 | Clear all | |
| Macro Selection | |||
| 96.04 | 1 | Factory | |
| 2 | Hand Auto | ||
| 3 | PID Control | ||
| 4 | T-Control | ||
| 5 | Sequence Control | ||
| 6 | Fieldbus | ||
| Motor Data | |||
| 99.06 | ……A | Motor Current | |
| 99.07 | ……V | Motor voltage | |
| 99.08 | ……Hz | Motor Freq | |
| 99.09 | ……rpm | Motor rpm | |
| 99.1 | ……KW | Motor Power | |
| Control Mode | 99.04 | 0 | DTC |
| 1 | Scaler | ||
| ID Run Request | 99.13 | 0 | No request |
| 1 | Normal | ||
| 2 | Reduced | ||
| 3 | Standstill | ||
| 4 | Autophasing | ||
| 5 | Current measurement calibration | ||
| 6 | Advance | ||
| Start/Stop/Direction | |||
| 20.01 | 1 | In1 Start | |
| 2 | In1 Start; In2 Dir | ||
| 3 | In1 Start fwd; In2 Start rev | ||
| 4 | In1P Start; In2 Stop | ||
| 5 | n1P Start; In2 Stop; In3 Dir | ||
| 6 | In1P Start fwd; In2P Start rev; In3 Stop | ||
| 12 | Fieldbus | ||
| Speed Reference | |||
| DTC Mode | |||
| 22.11 | 0 | zero | |
| 1 | AI1 | ||
| 2 | AI2 | ||
| 4 | FB A ref 1 | ||
| Scaler Mode | |||
| 28.11 | 0 | zero | |
| 1 | AI1 | ||
| 2 | AI2 | ||
| 4 | FB A ref 1 | ||
| Constant Speed | For DTC Control | ||
| 22.22 | 0 | OFF | |
| 2….7 | DI 1……DI 6(Constant speed 1) | ||
| 22.23 | Constant speed 2 | ||
| 22.24 | Constant speed 3 | ||
| 22.26 | ….rpm | constant speed 1 | |
| 22.27 | ….rpm | constant speed 2 | |
| 22.28 | ….rpm | constant speed 3 | |
| Constant speed | For Scaler Control | ||
| 28.22 | 0 | OFF | |
| 2….7 | DI 1……DI 6(Constant speed 1) | ||
| 28.23 | Constant speed 2 | ||
| 28.24 | Constant speed 3 | ||
| 28.26 | …..Hz | constant speed 1 | |
| 28.27 | ….Hz | constant speed 2 | |
| 28.28 | ….Hz | constant speed 2 | |
| Acceleration & Deceleration Time | For DTC Control | ||
| 23.12 | ….s | Acceleration Time 1 | |
| 23.13 | ….s | Deceleration time 1 | |
| 23.14 | ….s | Acceleration time 2 | |
| 23.15 | ….s | Deceleration time 2 | |
| Acceleration & Deceleration Time | For Scaler Control | ||
| 28.72 | ….s | Acceleration time 1 | |
| 28.73 | ….s | Deceleration time 1 | |
| 28.74 | ….s | Acceleration time 2 | |
| 28.75 | ….s | Deceleration time 2 | |
| Limit | |||
| Min speed | 30.11 | ….rpm | |
| Max speed | 30.12 | ….rpm | |
| Min Freq | 30.14 | ….Hz | |
| Max freq | 30.15 | ….Hz | |
| Max output current | |||
| 30.17 | ….A | ||
| 30.19 | ….% | Min torque | |
| 30.2 | ….% | Max torque | |
| Over Voltage Control | |||
| 30.3 | 0 | Disable | |
| 1 | Enaable | ||
| Fault Function | |||
| External Event Fault | |||
| 31.01 | 0 | inactive true | |
| 3…..8 | DI 1…..DI 8 | ||
| 31.02 | 0 | Fault (external event type) | |
| 1 | Warning (external event type) | ||
| Fault Reset Selection | |||
| 31.11 | 0 | off | |
| 2….7 | DI 1….DI 7 | ||
| Motor phase loss | |||
| 31.19 | 0 | no | |
| 1 | Fault | ||
| Motor ambient temp | |||
| 35.5 | ….. C | Temp | |
| Brake Chopper | |||
| 43.06 | 0 | Disable | |
| 1 | Enable with thermal model | ||
| 2 | Enable without thermal model | ||
| 4310 | …. Ohm | Resistor value | |
| 30.3 | 0 | Disable(if enable braking used) | |
| 1 | Enaable | ||
| Control Board Supply | |||
| 95.04 | 0 | Internal | |
| 1 | External | ||
| Local Control Disable | |||
| 19.17 | 0 | Enable | |
| 1 | Disable | ||
| Run Enable | |||
| 20.12 | 1 | on | |
| 2….7 | DI | ||
| Enable start command | |||
| 20.19 | 1 | on | |
| 1….7 | DI | ||
| Stop Mode | |||
| 21.03 | 0 | Cost | |
| 1 | Ramp | ||
| Emergency Stop | |||
| 21.05 | 1 | inactive | |
| 2 | Dill | ||
| 3….8 | DI | ||
